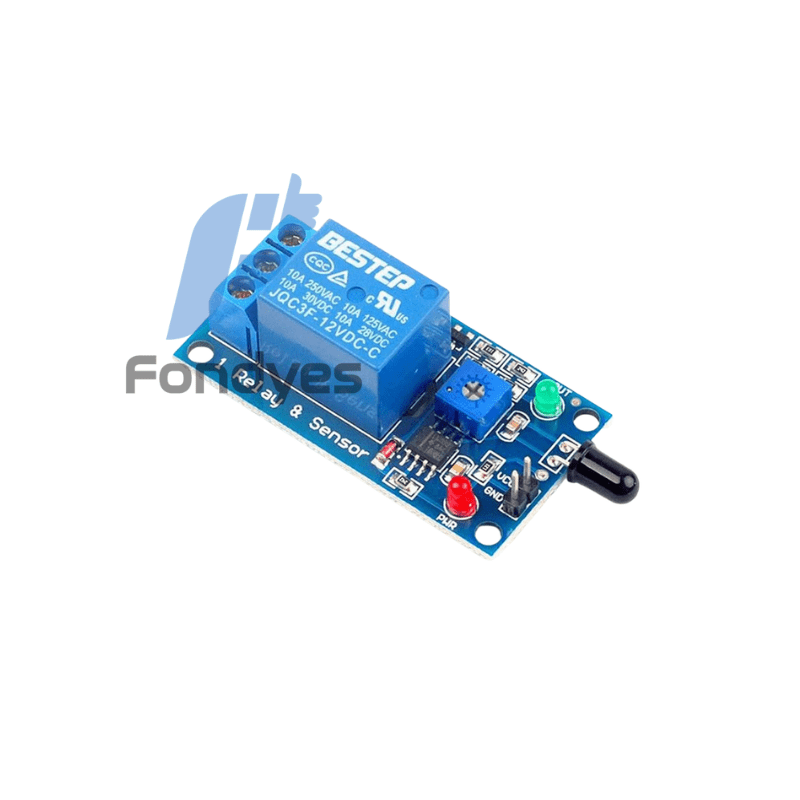

Flame Sensor Infrared Receiver Ignition Source Detection Module 1 Channel 5V

Description Features Detects flame wavelengths from 760 nm to 1100 nm Adjustable sensitivity via digital potentiometer 60° detection angle for precise flame monitoring Comparator output directly triggers relay Bluish terminal block for easy connections Flame detection range up to 0.8 meters Reliable operation across a wide temperature range Compatibility: Arduino, Raspberry Pi, ESP32, STM32, etc. Applications: Fire alarms, safety monitoring, firefighting robots, automation Specifications Item Type: Sensor Module Model Type: Flame Sensor Module Rated Voltage: 3.3 to 5V DC Operating Current: 10 mA Rated Voltage (AC): 250V AC Supply Current: 150 mA Operating Temperature: -40°C to 80°C Operating Humidity: 20% ~ 85% RH Operating Distance: 0.8 m Storage Temperature: -65°C to 125°C Dimensions (L×W×H): 50 × 26 × 19 mm Weight: 16 g Package Includes 1 x Flame Sensor Relay Module
